Data Annotation: Object Count

Industries: SportsTech, AI in Sports, Entertainment, Utility

Services provided: Research, Development, Testing, Deployment

10 +

Games Detected

Quantifying the Game to Unlock Insights, One Count at a Time, Powering AI.

From Client

The client in this research/development project aimed to build a highly accurate and efficient system for football (soccer ball) detection and tracking in live or recorded video. The core problem was the need for a robust solution that could handle the dynamic nature of sports footage, including varying lighting, occlusions, and fast movement, to provide reliable data for analysis.

Key Requirements:

  • Accurate and real-time detection of soccer balls in video.
  • Robust tracking of identified balls across video frames.
  • Ability to handle complex scenarios typical in sports (e.g., fast motion, partial occlusion).
  • Leveraging state-of-the-art machine learning models for high performance.
  • A clear methodology for preparing and annotating custom datasets.

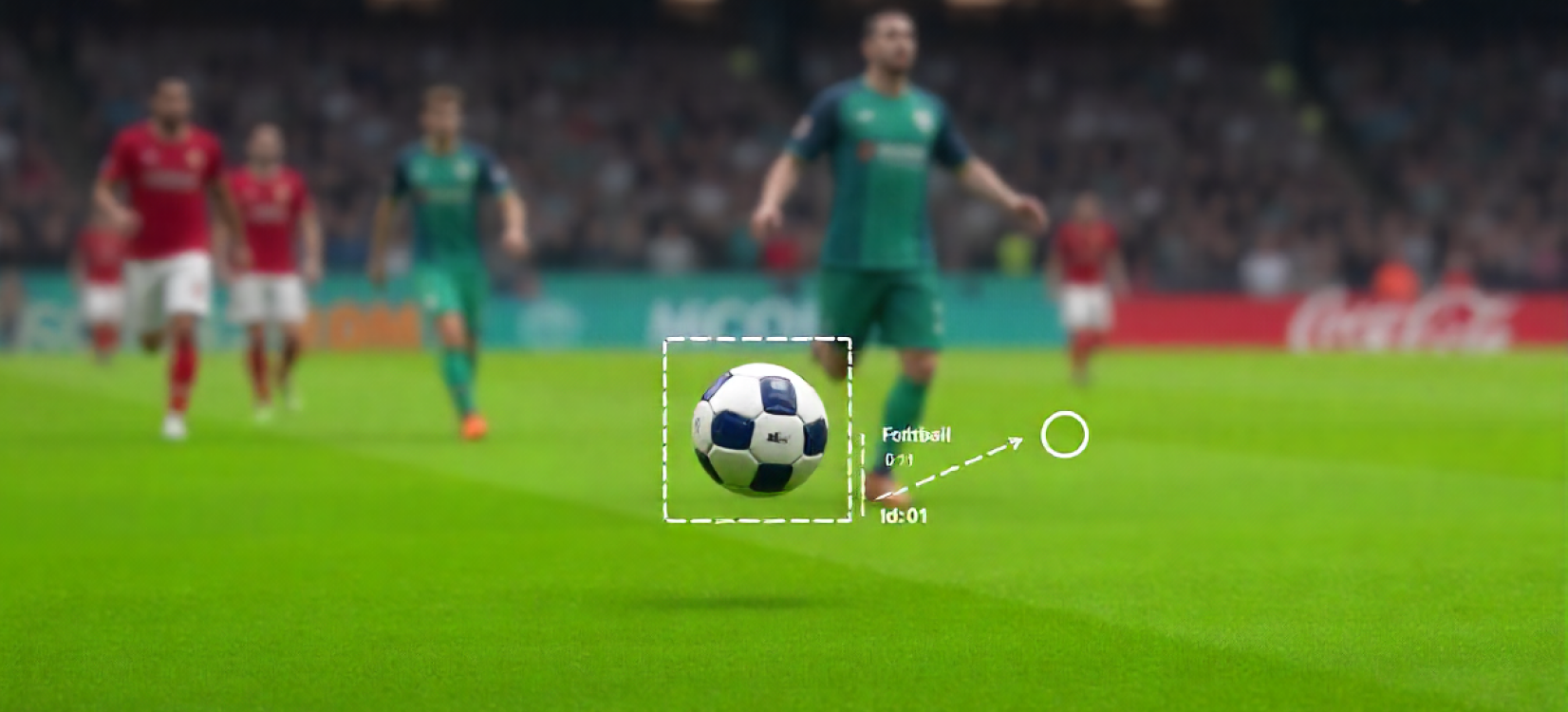

https://cizotech.com/wp-content/uploads/2025/07/Inner-Image-38.png

Goals and Objectives

1

Achieve Robust & Real-time Soccer Ball Detection: The primary goal was to develop a computer vision model capable of accurately identifying soccer balls within video frames with high precision and in real-time. This involved selecting and training an efficient object detection architecture to reliably locate the ball despite varying conditions.

2

Implement Stable Multi-Object Tracking for Ball Movement: A crucial objective was to track the detected soccer balls consistently across consecutive video frames, even during occlusions or rapid movements. This ensures a continuous identity for each detected object, which is foundational for subsequent analysis and accurate counting.

3

Ensure High-Quality Data Annotation for Model Performance: Recognizing that model performance heavily relies on the quality of training data, a key goal was to meticulously annotate a custom dataset of soccer ball images. This painstaking process ensured the model learned to recognize the object accurately across diverse scenarios and perspectives.

4

Integrate State-of-the-Art ML Algorithms for Optimal Performance: The project aimed to combine cutting-edge machine learning algorithms for both detection and tracking to achieve superior performance. The objective was to leverage the strengths of modern neural networks for detection and sophisticated tracking algorithms for association, providing a powerful and efficient system.

5

Enable Implicit Object Counting through Persistent Tracking: While not an explicit counting module, a fundamental objective was to enable the implicit counting of unique soccer balls by maintaining their identities throughout the video sequence. This tracking capability forms the basis for quantitative analysis, such as counting ball touches, possessions, or unique ball appearances in a given segment.

Solution We Provided

We developed a comprehensive solution for soccer ball tracking and implicit counting, leveraging state-of-the-art machine learning and computer vision techniques. The client in this research/development project aimed to build a highly accurate and efficient system for football (soccer ball) detection and tracking in live or recorded video. The core problem was the need for a robust solution that could handle the dynamic nature of sports footage, including varying lighting, occlusions, and fast movement, to provide reliable data for analysis.

Key solutions implemented include:

  • Custom Data Annotation Workflow: Utilized Roboflow to meticulously annotate a custom dataset of soccer ball images.
  • YOLOv8 Object Detection Model: Integrated and trained the YOLOv8 model, a highly efficient and accurate real-time object detection algorithm, to precisely identify soccer balls in individual video frames.
  • Deep SORT Tracking Algorithm: Implemented the Deep SORT algorithm for multi-object tracking. This sophisticated algorithm leverages Kalman filtering for state estimation and the Hungarian algorithm for data association.
  • Seamless Detection-Tracking Integration: Orchestrated the seamless interplay between the YOLOv8 detector and the Deep SORT tracker, where YOLOv8 provides initial detections that Deep SORT then uses to maintain object identities and trajectories.

Challenges and Innovative Solutions:

Accurate Detection of Small, Fast-Moving Objects with Varied Appearances:

Challenge: Soccer balls are relatively small in a wide field of view, move rapidly, and can have varying appearances (e.g., lighting, partial occlusion by players, different ball designs), making accurate and consistent detection difficult.

Innovative Solution: We leveraged YOLOv8, a cutting-edge object detection model known for its high accuracy and speed, specifically fine-tuned on a custom, meticulously annotated dataset via Roboflow. This targeted training enabled the model to learn the diverse visual characteristics of soccer balls robustly.

Maintaining Object Identity Across Frames in Dynamic Environments:

Challenge: In fast-paced soccer footage, balls can be occluded by players, go out of frame temporarily, or merge with other similar objects, making it challenging to maintain a consistent tracking ID.

Innovative Solution: We implemented the Deep SORT algorithm, which intelligently combines bounding box detections with appearance features and motion cues (via Kalman filters). This allows the system to robustly associate detections with existing tracks, minimizing identity switches and ensuring persistent tracking even through brief occlusions.

Real-time Performance for Live Video Analysis:

Challenge: Processing high-resolution video streams for both detection and tracking in real-time requires highly optimized algorithms and efficient computational resources to avoid latency.

Innovative Solution: The choice of YOLOv8 (known for its speed) coupled with the efficient data association of Deep SORT allowed us to build a pipeline capable of real-time processing. This optimization was crucial for applications requiring immediate insights.

Requirement for High-Quality, Domain-Specific Training Data:

Challenge: Generic object detection models often perform poorly on highly specific objects like a soccer ball in complex environments without tailored training data. Creating such a dataset is time-consuming and prone to errors.

Innovative Solution: We utilized Roboflow for streamlined data annotation, augmentation, and management. This platform facilitated the creation of a diverse and high-quality custom dataset, which was critical for training a robust and accurate YOLOv8 model specifically for soccer balls.

Technology Stack and Benefits:

Technology Stack:

  • Python: The primary programming language for developing the entire solution.
  • YOLOv8: State-of-the-art object detection model for identifying soccer balls in frames.
  • Deep SORT: Multi-object tracking algorithm for maintaining object identities across video sequences, integrating Kalman filters and the Hungarian algorithm.
  • Roboflow: Platform used for efficient custom dataset annotation, augmentation, and management.
  • OpenCV: Library for video processing, frame extraction, and visualization.
  • PyTorch (Inferred): Likely framework for implementing and running YOLOv8, given its prevalence in modern deep learning research.

Benefits:

  • Highly Accurate Object Detection: Achieves precise identification of soccer balls in various challenging video conditions.
  • Robust & Persistent Tracking: Maintains consistent object identities even with occlusions and rapid movements, crucial for reliable analysis.
  • Real-time Performance: Capable of processing video streams instantaneously, making it suitable for live sports analytics or automated officiating.
  • Data-Driven Insights: Provides the foundation for quantitative analysis, such as counting ball possessions, touches, or unique ball appearances, offering valuable insights for sports performance.
  • Scalable & Adaptable: The modular design allows for potential adaptation to track and count other objects in different domains by retraining the detection model with new annotated data.
  • Leverages State-of-the-Art ML: Utilizes modern, high-performance deep learning models (YOLOv8) and tracking algorithms (Deep SORT) to deliver superior results.

The "Data Annotation: Object Count" project successfully demonstrates a powerful application of computer vision, enabling precise detection and tracking of soccer balls, driven by high-quality data annotation and state-of-the-art machine learning techniques.

Technology We Used

Python YOLOv8 DeepSort Roboflow OpenCV PyTorch
